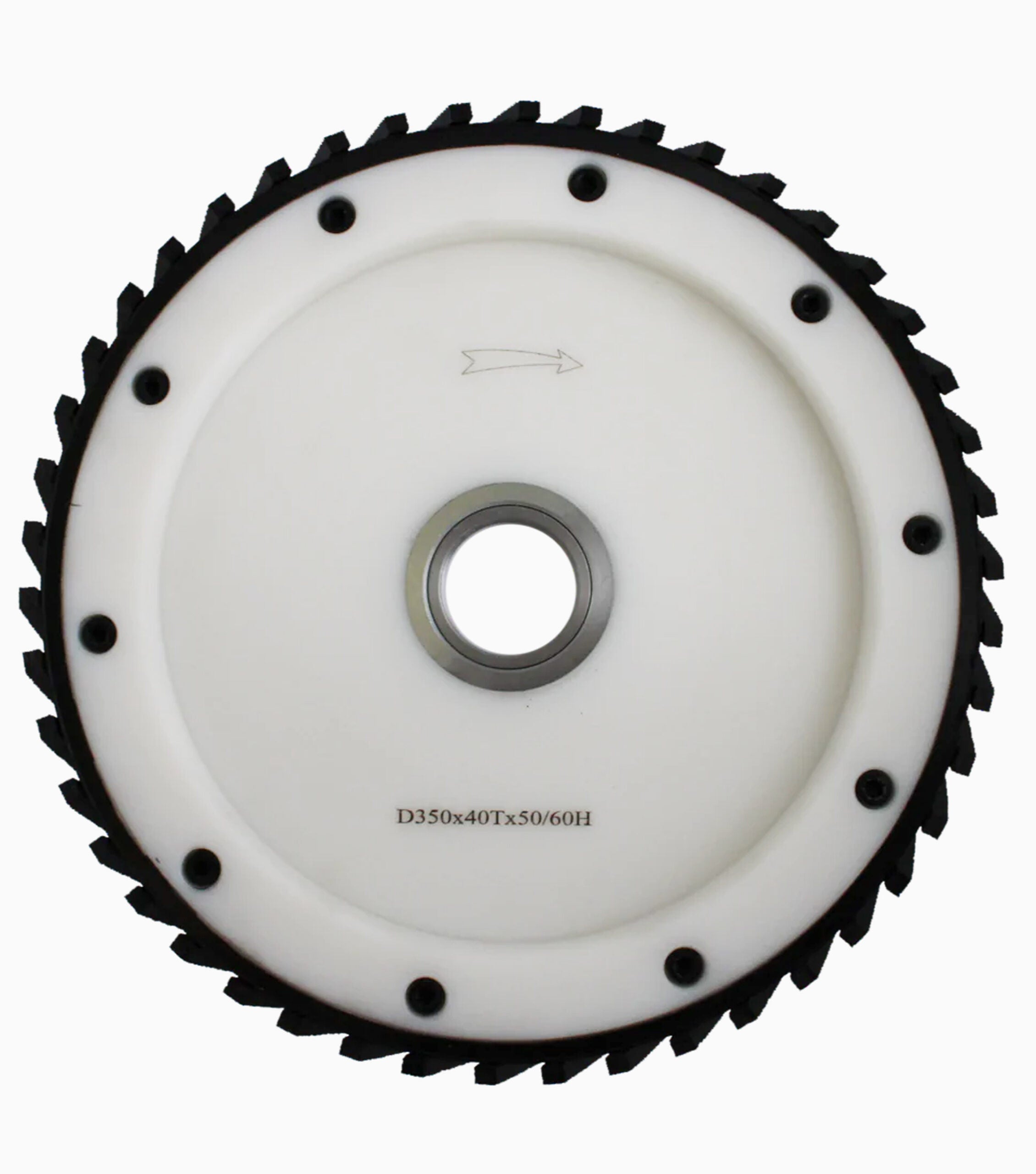

Introducing our Nylon Body Milling Wheel, the perfect solution for milling marble, granite, and quartz. This innovative wheel combines efficiency and precision with high-quality metal rim diamond segments, ensuring rapid and superior cutting performance. The nylon core body guarantees a silent and vibration-free cutting experience, delivering optimal results every time.
Key Features:

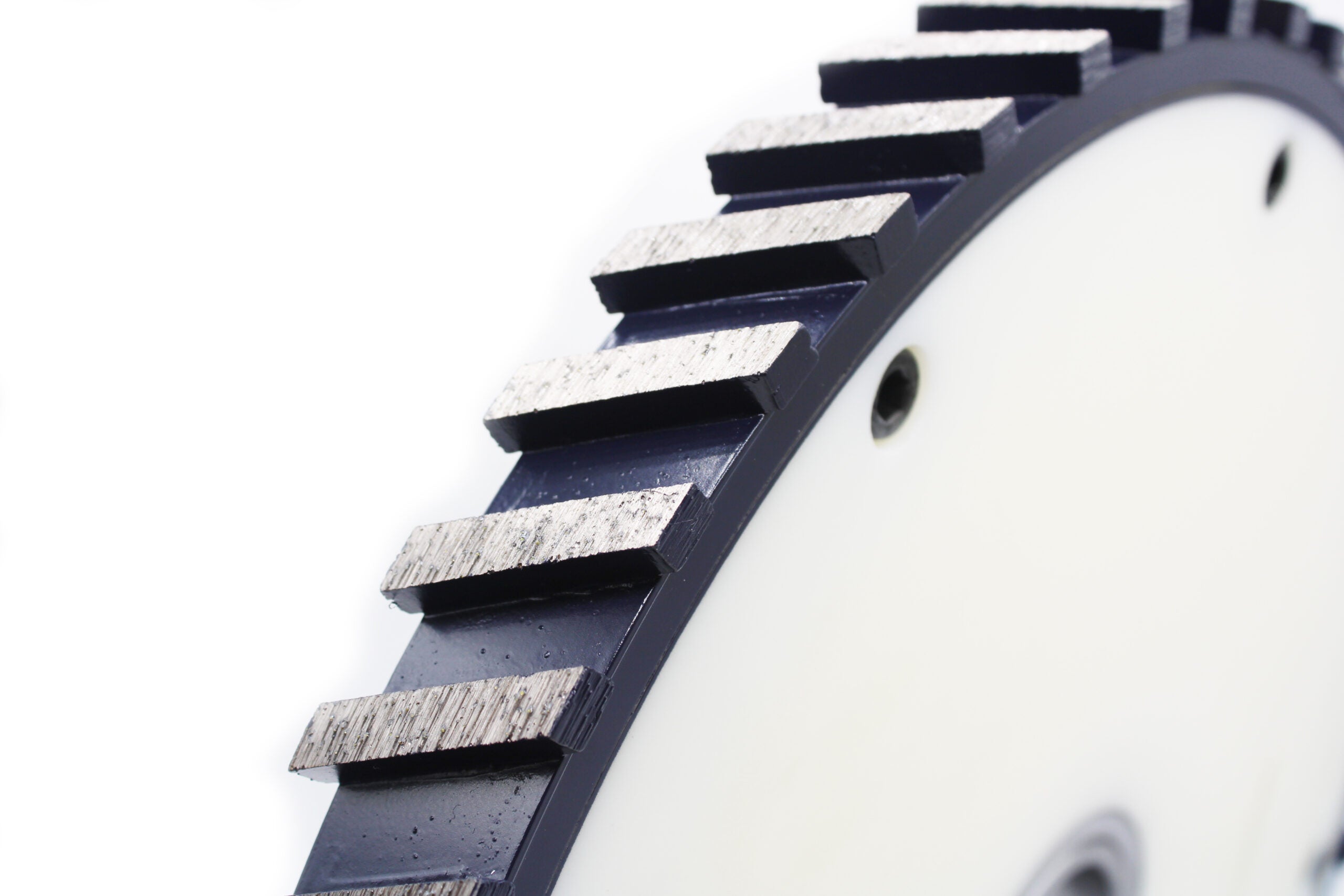

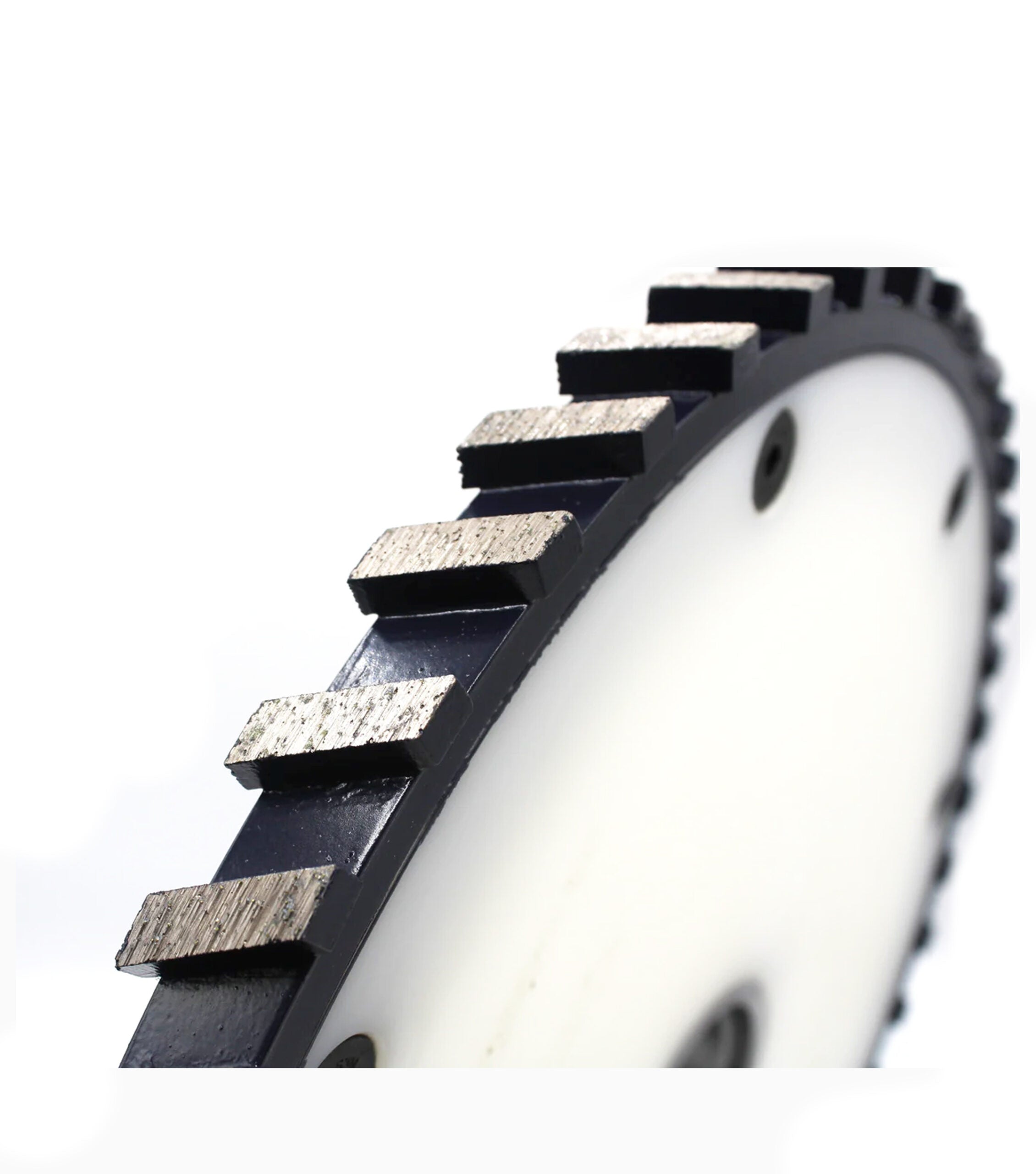

- Superior Cutting Performance: The high-quality metal rim diamond segments provide fast and efficient cutting.
- Silent and Vibration-Free: The nylon core body ensures a quiet and smooth operation.
- Durability: Designed for prolonged performance and consistent quality.
Recommended Usage: For the best results, adopt a gradual milling approach in 5mm depth increments. Utilize the full width of the wheel to prevent uneven wear on the teeth and diamond segments, ensuring a consistently high-quality milling process.
Milling Wheel Cutting Parameters & RPM Chart:
| Material | Diameter | Width | Bore | RPM | Feed Rate | Removal |
|---|---|---|---|---|---|---|
| Granite, Marble & Quartz | 350mm | 20mm | 50/60mm | 1500 | 500mm/min | 3mm |
| Granite, Marble & Quartz | 350mm | 30mm | 50/60mm | 1500 | 500mm/min | 3mm |
| Granite, Marble & Quartz | 350mm | 40mm | 60/60mm | 1500 | 500mm/min | 3mm |
Elevate your milling experience with our reliable and durable Nylon Body Milling Wheel.
